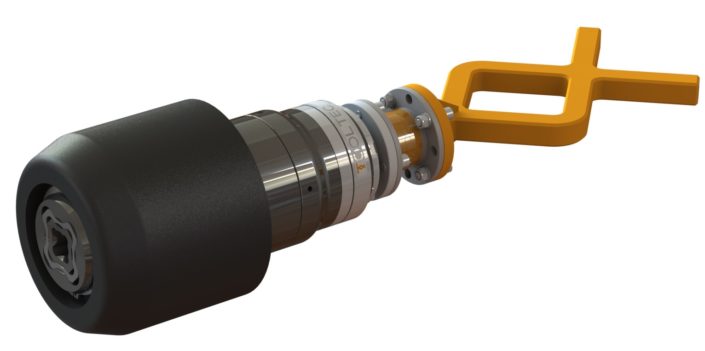

Manual Low Torque Tool Smart Socket

The Manual Torque Tool or Torque Limiter is designed to allow the ROV manipulator operation of API class 1-4 rotary torque interfaces. The tool limits the torque that can be transmitted from the ROV manipulator to the valve stem during an ROV intervention operation, mitigating against the possibility of over-torqueing and damaging the valve or valve stem. The tool is fitted with an integral, adjustable torque limiting clutch which can be pre-set to any torque from 20 – 200Nm. The nose of the toll features a “smart” multi-socket interface which eliminates tool reconfiguration time on deck.
