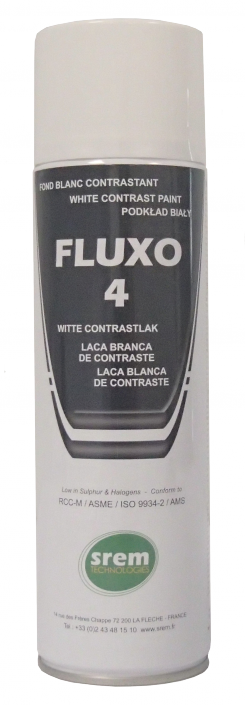

FLUXO 4 – White Contrast Paint

Manufacturer: White Contrast Paint

White contrast paint
Download product sheet

FLUXO 4 –  White Contrast Paint

Conform to EN ISO 9934-2 and AMS High Evaporation Rate & High Covering

–      500 ml Aerosol cans
–       Delivery with Certificate of Conformity & Batch Analysis
–      Conform to : ASMA / RCCM/ Nucleaur Quality (Low in Sulphur and Halogens)/ ISO / AMS / ASTM

FLUXO 4 is a quick drying white paint, which is designed specifically for use in the color contrast method of magnetic particle inspection. FLUXO 4 provides a dense white background against which black or red indications of defects can be seen readily. FLUXO 4 is ideal for use with either oil based FLUXO 3 or water based magnetic inks FLUXO 215.

This Magnetic particle examination is used for the detection of emerging defects in all ferromagnetic materials.

Applicability: Aeronautics, Automobile, Railway, etc…

Components are magnetized and FLUXO 3 is applied to the test area, normally by spraying immediately prior to and during magnetization. Application of FLUXO 3 should cease before the magnetization is switched off. Defects will show up as well defined black indications and inspection should take place in good white light of at least 500 lux. It is not practical to use FLUXO 3 on dark colored substrates as it would be difficult for the inspector to identify indications against the dark background. For this reason, FLUXO 4 is frequently used to provide a contrasting white background against the black indications thereby enabling the inspector see and interpret indications more easily. (Alternatively, fluorescent fluids such as FLUXO 6 may be used, but this requires the availability of a UV Light)


Send me more info about

FLUXO 4 – White Contrast Paint
